Y Type Strainers

Vee Bee offer a range of Y Type Strainers second to none, both in size, range, material and screen choice together with the experience to be able to design and manufacture custom made specials to suit any known practical application.

In addition to the basic materials, Vee Bee can manufacture in a wide variety of special metals such as Monel, Inconel, Hastalloy C, Duplex stainless and other Alloy steels. We can provide a comprehensive range of flanges in accordance with all International Standards including ANSI, BS4504, BS10, and DIN specifications.

Vee Bee are increasingly aware of the problem of high differential pressure drops caused by some manufacturers reducing the size of their strainer bodies to save materials and cut costs. That is why Vee Bee supply units with generous ratios of filtration area to pipe bore area to prevent flow restriction.

With almost 50 years’ experience, plus our extensive in-house design, manufacture and testing facilities, we have the capability to meet any requirement. For non-standard use of materials please contact Vee Bee’s Technical Sales.

We can provide a comprehensive range of flanges in accordance with all International Standards including ANSI, BS4504, BS10, and DIN specifications.

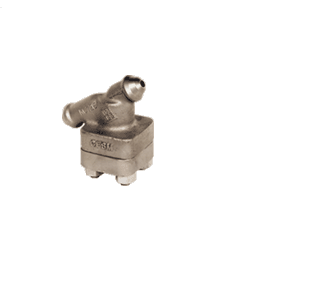

Butt Weld/Socket Weld

SW Ends 0.5" (15mm) to 2"+ (50mm+)

BW Ends 0.5" (15mm) to 14"+ (350mm+)

Various forged and cast materials of construction

Maximum pressure ratings API 10,000lb

Wide range of screening materials available

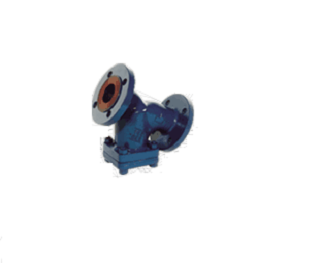

Flanged

Sizes: 0.5" (15mm) to 20"+ (500mm+)

Flanged Ends ANSI, BS4504, DIN, BS10, JIS

Various forged and cast materials of construction

Maximum pressure ratings API 10,000lb

Wide range of screening materials available

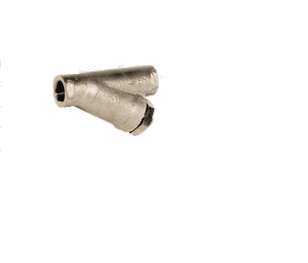

Screwed

Sizes: 0.5" (15mm) to 2"+ (50mm+)

Screwed Ends API, BSP, NPT

Various forged and cast materials of construction

Maximum pressure ratings ANSI Class 1500lb

Wide range of screening materials available

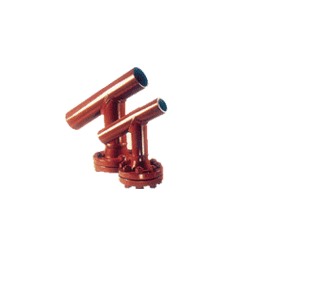

Fabrication Y

Sizes: 0.5" (15mm) to 30"+ (750mm+)

Flanged Ends ANSI, BS4504, DIN, BS10, JIS

BW Ends from Sched 40 to Sch 100 + Special Sched

Carbon Steel, Low Temperature Steel, S/S, Duplex S/S Alloy Steel or other materials available

Maximum pressure rating class 2500lb+ (172 BarG+)

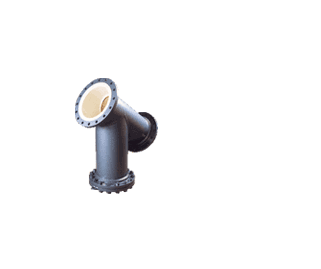

Fabrication PTFE Lined

Sizes: 0.5" (15mm) to 30"+ (750mm+)

Flanged Ends ANSI, BS4504, DIN, BS10, JIS

Carbon Steel, Low Temperature Steel, S/S, Duplex S/S Alloy Steel or other materials available

Maximum pressure rating class 2500lb+ (172 BarG+)
